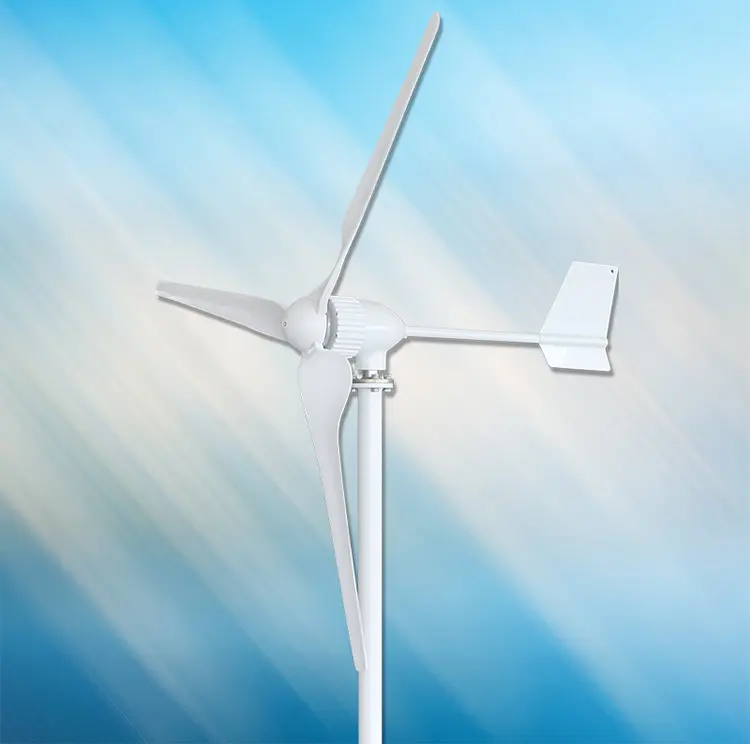

Custom 5kw Horizontal Wind Turbine Naier Naier
Company Advantages
· Naier 5kw horizontal wind turbine is elaborately manufactured by using quality raw materials and advanced production technology.
· 5kw horizontal wind turbine has many outstanding advantages.
· The product is attracting more and more market attention and will be more used in the future.
|
Model |
NE-800M6 |
NE-1000M6 |
|
Rated power |
800W |
1000W |
|
Rated voltage |
24v/48v |
48v/96v |
|
Start-up wind speed |
2.5m/s |
|
|
Rated wind speed |
11m/s |
|
|
Survival wind speed |
45m/s |
|
|
Wheel diameter |
1.95m |
2.1m |
|
Number of blades |
3 |
|
|
Blades material |
Nylon fiber |
|
|
Generator type |
Three phase permanent magnet AC synchronous generator |
|
|
Magnet material |
NdFeB |
|
|
Generator case |
Casting aluminum alloy |
|
|
Control system |
Electromagnet |
|
|
Speed regulation |
Automatically adjust windward direction |
|
|
Working temperature |
-20°C - 60°C |
|
|
Design life |
25 y |
|
Advantages of M6 systems
Advantages one
● Adopting a direct drive permanent magnet generator, with upwind , automatically adjust windward direction , without gearbox transmission design, the whole machine has low starting wind speed, small size, light weight, beautiful appearance, and low operating vibration.
● Having multiple certifications such as CE and ISO14001, as well as multiple intellectual property patents.
Advantages two
● Multi-level safety protection such as electromagnetic braking and automatically adjust windward direction, with independent intellectual property rights of the company, ensures the safe and stable operation of the wind turbine in extreme weather conditions based on real-time monitoring data.
● The motor casing and engine compartment are both integrally formed by mold casting, the material is aluminum alloy, which has the advantages of good heat dissipation and light weight. the surface adopts strict anti-corrosion measures, making it durable and durable.
Advantages three
● The blades of the wind turbine are precisely manufactured by a new technology and equipped with optimized aerodynamic shape design and structural design, making installation convenient, wind energy utilization coefficient high, and increasing annual power generation.
Professional magnetic circuit design, low motor starting torque, reduced starting wind speed, and improved wind energy utilization rate.
Advantages four
● Adopting humanized design, the overall components are lightweight, flexible, and convenient for lifting, installation, and disassembly.
● Suitable for small wind farms, smart grids, microgrid systems, and other applications.
● Adopting intelligent tracking technology for wind power generation efficiency, effectively regulating current and voltage, resulting in high power generation conversion efficiency.
Case display
Company Features
· Since its inception, Yixing Naier Wind Power Technology Co., Ltd has continued to provide high-quality 5kw horizontal wind turbine. We are considered a trustworthy provider and distributor.
· Naier masters highly imported technology to producing 5kw horizontal wind turbine.
· We have adhered to the principle of continuously creating values for clients for many years. We will continue to provide quality services and achieve the best values for clients.
Product Comparison
Compared with products in the same category, Naier's 5kw horizontal wind turbine has the following outstanding features.
