Company Advantages

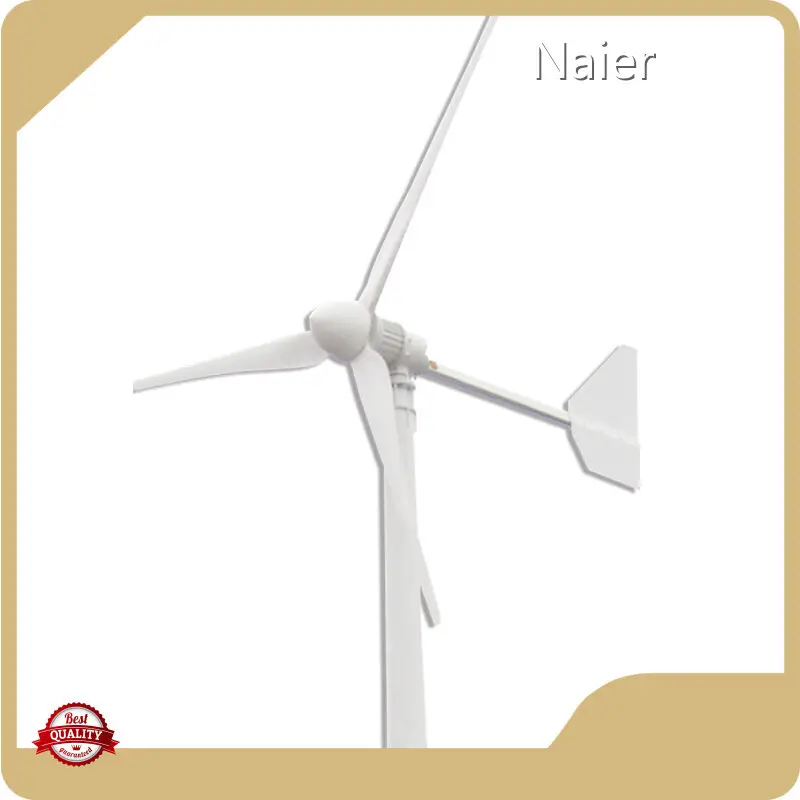

· Naier wind spiral turbine is highly recommended for its fine design.
· The product has value beyond its function and features.
· Yixing Naier Wind Power Technology Co., Ltd can undertake customer specified delivery.
|
Model |
NE-3kG-GJ |
NE-5kG-GJ |
NE-7.5kG-GJ |
NE-10kG-GJ |
NE-15kG-GJ |
NE-20kG-GJ |
NE-30kG-GJ |
|
Rated power |
3kw |
5kw |
7.5kw |
10kw |
15kw |
20kw |
30kw |
|
Rated voltage |
48v/120v |
96v/220v |
96v/380v |
120v/380v |
120v/380v |
220v/380v |
220v/380v |
|
Start-up wind speed |
2.5m/s |
||||||
|
Rated wind speed |
10m/s |
10m/s |
10.5m/s |
10.5m/s |
11m/s |
11m/s |
11m/s |
|
Survival wind speed |
45m/s |
||||||
|
Wheel diameter |
4.8m |
5.4m |
5.8m |
6.48m |
7.86m |
9.28m |
11.82m |
|
Number of blades |
3 |
||||||
|
Blades material |
FRP |
||||||
|
Flange Connection |
DN125 |
DN150 |
DN200 |
DN250 |
|||
|
Generator type |
Three phase permanent magnet AC synchronous generator |
||||||
|
Magnet material |
NdFeB |
||||||
|
Generator case |
Casting aluminum alloy |
||||||
|
Control system |
Intelligent Mechanic main shaft brake+Electromagnet control |
||||||
|
Speed regulation |
Automatic direction |
||||||
|
Working temperature |
-40°C - 70°C |
||||||
|
Design life |
25 y |
||||||
Advantages of G systems
Advantages one
● Adopt low speed permanent magnet generator , design of direct drive gearless transmission .
● Having multiple certifications such as CE and ISO14001, as well as multiple intellectual property patents.
● Multi-level safety protection such as Intelligent mechanical brake, electromagnetic braking and automatically adjust windward direction, with independent intellectual property rights of the company, ensures the safe and stable operation of the wind turbine in extreme weather conditions based on real-time monitoring data.
Advantages two
The motor casing is integrally formed by mold casting, the material is aluminum alloy, engine compartment is made of high-strength alloy steel and rolled up into shape as a whole, which has the advantages of good heat dissipation and light weight. the surface adopts strict anti-corrosion measures, making it durable and durable.
Advantages three
The blades of the wind turbine are precisely manufactured by a new technology and equipped with optimized aerodynamic shape design and structural design, making installation convenient, wind energy utilization coefficient high, and increasing annual power generation.
Advantages four
● Professional magnetic circuit design, low motor starting torque, reduced starting wind speed, and improved wind energy utilization rate.
● Adopting humanized design, the overall components are lightweight, flexible, and convenient for lifting, installation, and disassembly.
● Suitable for small wind farms, smart grids, and other applications.
Case display
Company Features
· Yixing Naier Wind Power Technology Co., Ltd has been in the business of manufacturing wind spiral turbine for many years. Our experience and integrity are at a high level.
· There are a complete set of latest automatic production facilities and testing equipment that are imported from Japan, the United States, or other countries. These facilities greatly improve production efficiency and meet production demand. With continuous investment into new technologies and product quality, we have gained lots of important achievements in return, such as the honor of Innovative Enterprises. These achievements are strong evidence of our competence in the wind spiral turbine field.
· Naier will develop better based on the principle of wind spiral turbine for business. Call!
Application of the Product
The wind spiral turbine produced by Naier is widely used in many industry sectors.
We listen carefully to customer's requests and provide targeted solutions based on the bottleneck of customer. Therefore, we can help our customers to better solve problems.
