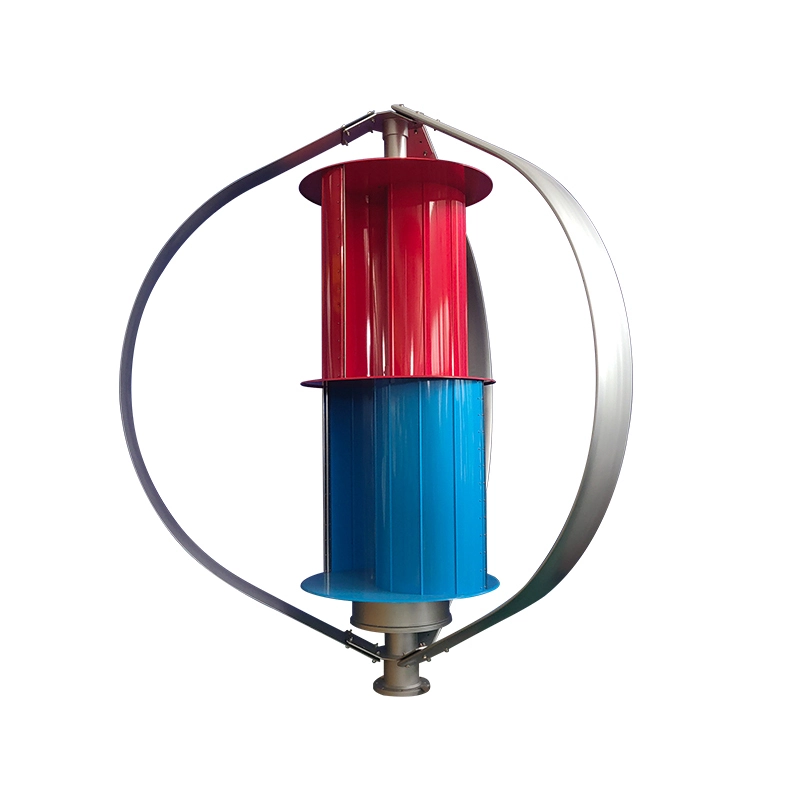

VAWT 1KW Vertical Wind Turbine 24V 48V Wind Generator Manufacturer Q quality Naier
|
Model |
NE-1kQ10-Cla |
NE-2kQ10-Cla |
NE-3kQ10-Cla |
NE-5kQ10-Cla |
NE-1kQ10-Max |
NE-2kQ10-Max |
NE-3kQ10-Max |
NE-5kQ10-Max |
|
Rated power |
1kw |
2kw |
3kw |
5kw |
1kw |
2kw |
3kw |
5kw |
|
Rated voltage |
48v/96v |
120v/220v |
220v/380v |
48v/96v |
120v/220v |
220v/380v |
||
|
Start-up wind speed |
2m/s |
2.5m/s |
2.5m/s |
3m/s |
||||
|
Rated wind speed |
11m/s |
11.5m/s |
12m/s |
11m/s |
11.5m/s |
12m/s |
||
|
Survival wind speed |
35m/s |
|||||||
|
Wheel diameter |
2m |
2.5m |
3m |
3.6m |
2m |
2.5m |
3m |
3.6m |
|
Flange Connection |
DN125 |
DN200 |
DN125 |
DN200 |
||||
|
Number of blades |
3 |
|||||||
|
Blades material |
Casting aluminum alloy |
|||||||
|
Generator type |
Three phase maglev generator |
Three phase permanent magnet AC synchronous generator |
||||||
|
Magnet material |
NdFeB |
|||||||
|
Generator case |
Casting aluminum alloy |
|||||||
|
Control system |
Electromagnet |
|||||||
|
Speed regulation |
Automatically adjust windward direction |
|||||||
|
Working temperature |
-20°C - 60°C |
|||||||
Product Advantages
Advantages one
● Adopting an exterior structural design with independent intellectual property rights,perfect for breeze start,the effect of breeze power generation,machine volume small,light weight,with beautiful appearance,low operating vibration.
● The shell of the magnetic levitation generator is made of high-strength aluminum alloy and is integrally die-cast through a mold,the outer rotor generator casing is made of high-strength alloy steel and rolled up into shape as a whole,high mechanic strength,good heat dissipation performance.equipped with special stator and rotor design,effectively reducing running resistance torque,improve the utilization rate of wind energy.
Advantages two
● The wind wheel drives the blades using high-quality aluminum alloy thick plates,safe and firm;at the same time, the surface of the blade is sprayed with plastic or oxidation treatment,enhanced corrosion resistance, attractive and durable,colors can be customized according to customer requirements.
● High speed blades are molded using high-quality aluminum profile molds for overall die-casting,high installation accuracy,stronger typhoon resistance,ensure safe and reliable operation of the fan.
Advantages three
● The intelligent tracking technology of wind power generation efficiency is adopted,effectively regulating current and voltage,high power generation conversion rate.
● Low noise during operation,omnibearing automatic windward,adopting humanized flange installation design,suitable for various occasions.the use of distributed wind power generation layout can effectively solve the problem of customers' electricity difficulties.
